U TUBE MANOMETER ( MODEL NO : UTM/MG/110 ) |
|
|
|
|
|
|
|
|
| |
APPLICATION : INDUS MAKE U TUBE LIQUID COLUMN MANOMETER IS USE TO DETERMINE VELOCITY AND STATIC PRESSURE, LEAKAGE, FAN EFFICIENCY AND GAS PRESSURE. Manometer have ‘U’ shaped tube, half filled with Liquid (Water / Mercury / SP Gr 0.81 ). When both the tubes are open, the liquid is at the same height in each leg (Tube/Limbs). When positive pressure is applied to one leg the liquid is forced down in that leg and up in the other. The difference in the height, which is the sum of the reading above and below zero, tells you the pressure. When Vacuum is applied to one Leg, the liquid rises in that leg and falls in the other. The difference in the height indicates the amount of Vacuum.
‘INDUS’ MAKE Industrial Grade, Metallic Body U TUBE MANOMETER, Consisting of two Glass Limbs. Stainless Steel / Brass Connecting fittings mounted on a metallic frame, Provided with White Acrylic Scale with zero at the centre. The Manometer will be protected with transparent acrylic front cover fix with Aluminium frame and external zero adjustment Knob / Drain Plug / Fill Plug will Be Provided. |
|
| |
Wall Mounting |
|
|
|
Process Connection : Nozzel type and Screwed type Available in 1/8” BSP/ NPT, ¼” BSP/NPT.
Mounting : Wall Mounting , Table( Stand) Mounting and Panel Mounting. STAND MOUNTED
MODEL : Manometer will be provided with C.I. 3 legged Stand, having 3 Nos leveling screw and attached Round Type Bull Eye Spirit Level.
Standard Ranges : Unit : mmWc, mm of Hg, Equivalent is PSI and other units as per Customers’ requirements. |
|
50-0-50
80-0-80
100-0-100
150-0-150
200-0-200 |
250-0-250
300-0-300
400-0-400
450-0-450
500-0-500 |
600-0-600
750-0-750
800-0-800
1000-0-1000 |
|
Table( Stand) Mounting |
|
|
|
Manometer can also be manufactured for range above 2000 mmwc to 20000 mmwc against order. |
|
|
|
|
|
|
|
| |
U tube Manometer, Commercial Type ( Model No : UTM/WB/109 ) |
|
|
| |
U Tube Manometer, Mounted on wooden board made out of imported Quality PINE Wood. Consisting of ‘U’ Bend Glass Limbs of BOROSIL, OD : 8 mm fixed with PVC or Acrylic Clamps, White Acrylic Scale will be provided with zero at the Centre. Connection will be Made of corrugated nozzles fabricated out of the same Glass.
Standard Range : From 50 mmWc/Hg to 2000 mmWc/hg
Least Count : 1 mm
Mounting : Wall / Table
|
|
|
|
| |
|
|
|
| |
SINGLE LIMB WELL TYPE DIRECT READING MANOMETER ( MODEL : SLM/ MG / 115 ) |
|
|
| |
INDUS Process control instruments offer single limb well type direct reading manometer used for precision measurement of pressure, vacuum, differential pressure, flow and liquid level measurement device used in different process applications.these manometer are general purpose, direct reading and relatively simple instruments.The well type single limb manometer are accurate & dependable as well as highly versatile for many applications.All scales are graduated to correct for the drop in the well level. |
|
| |
|
|
|
|
|
In general consisting of Stainless steel fittings, Borosil Glass Limbs mounted on a metallic frame, Provided with White Acrylic / Aluminium Scale with zero at the bottom. The Manometer will Be protected with Transparent front cover and external Zero Adjustment Knob will be provided.
Range : From 0 to 10000 mWc, VAC 0 to -760 mmHg
Process Connection : Nozzel type and Screwed type Available
in 1/8” BSP/ NPT, ¼” BSP/NPT.
Mounting : Wall Mounting and Table (Stand) Mounting STAND MOUNTED
MODEL : Manometer will be provided with C.I.3 legged Stand, having 3 Nos leveling screw and attachedRound Type Bull Eye Spirit Level.
Arrangements : Fill Plug, Drain Plug, Levelling Screw, Spirit Level,‘0’ Adjustment Knob.
|
|
Ranges Available
( mmWc / mmHg )
0 to 100
0 to 250
0 to 300
0 to 500
0 to 760
0 to 1000
0 to 1500
0 to 2000
0 to 3000 |
|
|
|
| |
|
|
|
| |
Single Limb Manometer in Wooden Body |
|
|
|
|
|
|
Wooden board type Single Limb Manometers are available for commercial use.Straight Glass Limb is end fitted with Aluminium
Blocks. An Acrylic direct reading scale and
Stailnless Steel Reserve pot is Provided.
Available in Wall Mounting / Table Mounting.
Range : From 0 to 10000 mWc, VAC 0 to -760 mmHg |
|
|
|
|
| |
|
|
|
| |
|
|
| |
INDUS Make Inclined Tube Manometer utilize expanded scales for unusual sensitivity for fast, easy reading of low pressures, draft of small differential pressure. They are available in simple Standard Models as well as extreme precision inclined Manometers.
Acrylic Body Inclined Tube Manometer
INDUS solid acrylic body portable manometers are fabricated from 1" thick, clear acrylic block. Unbreakable, stable and free of distortion, consisting of drilled-in indicating limbs & tanks with high precision & accuracy. An acrylic/aluminium scale is provided which is calibrated in the specified range.
|
|
|
| |
|
|
|
|
|
|
|
|
|
Table Mounting |

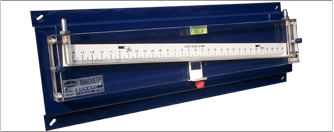

Wall Mounting |
|
|
|
|
|
|
|
|
| |
|
|
|
| |
Well Type Inclined Tube Manometer ( Model No : INDUS/INC/202 ) |
|
|
|
|
|
|
Industrial grade High Accuracy Manometer, consisting of stainless steel wells and fittings, aluminium casing from three sides and transparent acrylic front cover protected with metallic frame. Straight BOROSIL Indicating Glass Tube gland packed in end SS block to facilitate easy removal. An Acrylic scale is provided which is calibrated in the specified Range.
Mounting : Wall Mounting, Table Mounting Plush Or Panel Mounting Available
Standard Accessories
Scale '0' knob
Spirit Level
Drain Plug
Connecting Rubber/PVC Tubing
Connections and
Panel Mounting Holes provided
Connection Options
a. Nozzle Type
b. Female Screwed Type
c. Male Screwed Type
d. Any other
Least Count:
0.1, 0.2, 0.25 and 0.5 depending upon ranges.
Any in-between range will be manufactured on request. |
|
Available Ranges |
|
| -1 to +5 mmWc |
0 to 50 mmWc |
| -1 to +10 mmWc |
0 to 75 mmWc |
| -5 to +5 mmWc |
0 to 100 mmWc |
| 0 to 10 mmWc |
0 to 150 mmWc |
| 0 to 15 mmWc |
0 to 200 mmWc |
| 0 to 25 mmWc |
0 to 500 mmWc |
| 0 to 30 mmWc |
0 to 1000 mmWc |
|
|
|
| |
|
|
|
| |
|
| |
INDUS solid acrylic body portable manometers are fabricated from 1" thick, clear acrylic block. Unbreakable, stable and free of distortion, consisting of drilled-in indicating limbs & tanks with high precision & accuracy. An acrylic/aluminium scale is provided which is calibrated in the specified range.
Connection : SS304/ Brass / PVC Nozzels in 1/8” and ¼” BSP |
| |
U TUBE MANOMETER
INDUS make U-Tube type Primary Standard Liquid Column Manometer used for precision measurement of pressure, vaccum, differential pressure, and flow measurement in plants and labs where certain accuracy is required.
Range In MM :
50 - 0 - 50
100 - 0 - 100
150 - 0 - 150
200 - 0 - 200
250 - 0 - 250
300 - 0 - 300 |
|
|
|
| |
|
|
|
| |
|
|
|
|
|
INDUS make Single Limb well Type Direct Reading Manometer for the precision measurement of pressure, vaccum differential pressure flow and liquid level measurement.
Available : In wall mounted
Range In MM :
0 - 100
0 - 200
0 - 300
0 - 400
0 - 500 |
|
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
INDUS make Inclined Manometers utilize expanded scales for unusual Sensitivity for fast, easy reading of low pressure. draft of small differential pressure. They are available in simple standard Models as well as extreme precision inclined Manometer. Available in Wall Mounting and Table (Stand) Mounting) |
|
|
Range In MM :
-1 to +5 mmWc
-1 to +10 mmWc
-5 to +5 mmWc
0 to 10 mmWc
0 to 15 mmWc
0 to 25 mmWc |
|
|
|
|
0 to 30 mmWc
0 to 50 mmWc
0 to 75 mmWc
0 to 100 mmWc |
|
|
|
| |
|
|
|
|
| |
|
| |
|
|
|
This is a very useful gauge to measure reduced pressure. It covers the range 0.01 to 0.001 mm of Mercury. It is usually employed in conjunction with vacuum pump. It has direct reading, compact and is charged with only 11 to 12 ml of mercury. To know the vacuum in the system the gauge must be tilted to vertical position. After knowing the pressure tilt the gauge to horizontal position (Rest Position).
Range : 10 mm x 0.01 mm & 1mm x 0.001 mm |
|
|
|
|
| |
|
|
|
| |
Anzchute Manometer ( Model No :ACZ-530 ) |
|
|
| |
|
|
|
Glass U Tube with stopcock mounted on hard wooden stand. One arm of the tube is closed and completely filled with Mercury. Vacuum connection is made to the other arm. When Pressure is too low to support column of mercury, it beings to tail in the tube. The movable scale is used to measure height of column.
Unit has scale graduated from 0 to 100 mm on both sides of the central zero. Difference between levels of two mercury columns measure vacuum applied to gauges.
Heavy wall glass Manometer tubes has constrictions to prevent mercury surge from breaking glass if vacuum is unexpectedly high.
|
|
|
|
|
| |
|
|
|
| |
|
|
|
|
|
|
» L - SHAPES
» S - TYPE
» STRAIGHT TYPE
» DOUBLED TIPPED TYPE (AS PER DESIGNED AND DIMENSION) |
|
|
|
|
|
|
|
|
|
|
 |
